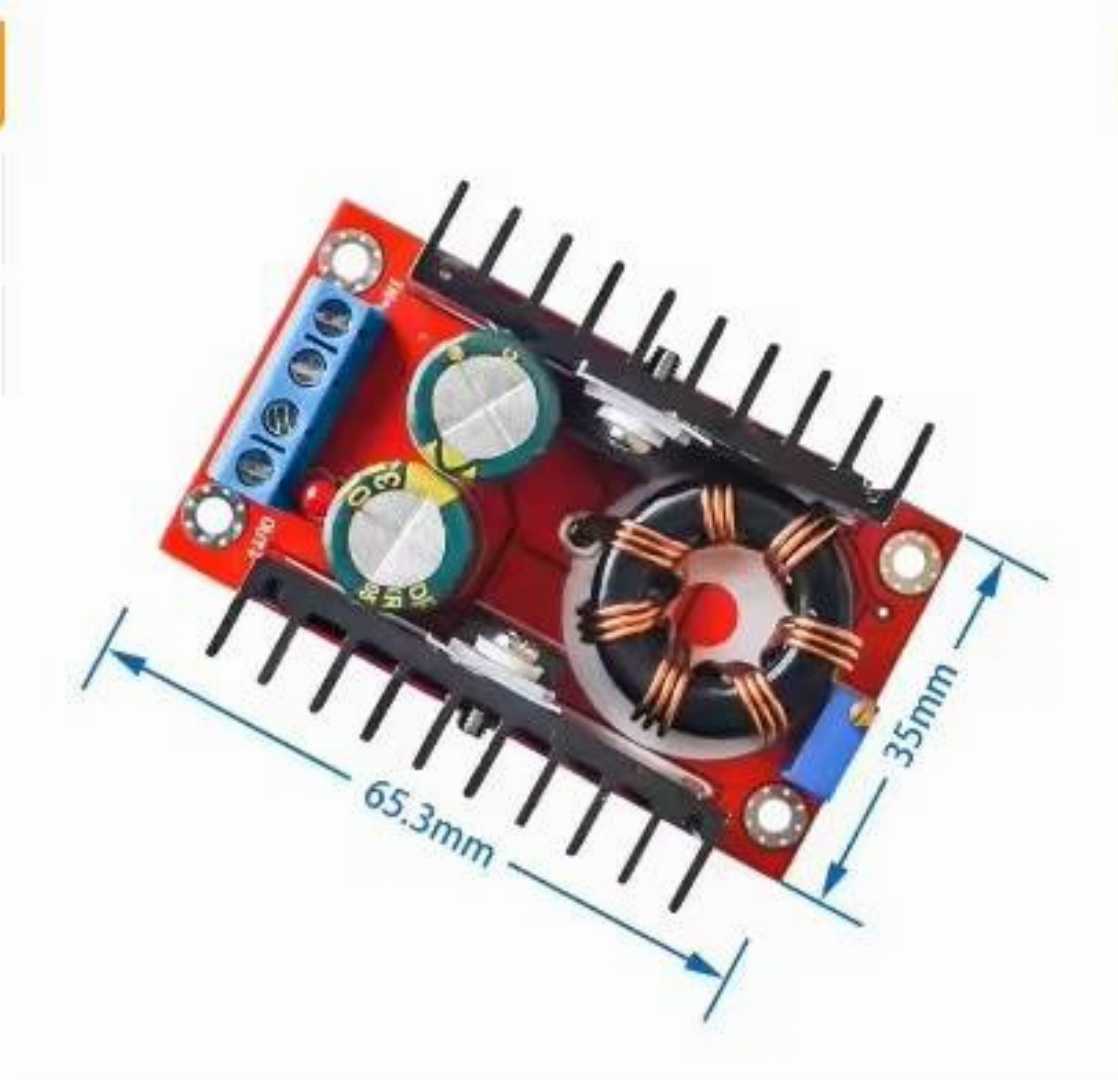

DC to DC 10-32V to 12-35V DC to DC Step UP Boost Converter 150W Boost Converter Power Module
DC to DC 10-32V to 12-35V DC to DC Step UP Boost Converter 150W Boost Converter Power Module
- Output voltage: 12-35V (adjustable)
- Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
- Easy to drive 65W 90W dual-core notebook.
- Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c
- Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45c
- No-load current: 25mA typical
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection
